Banana Screen Mining Working Principle
The banana screen, also known as the multi-slope vibrating screen, is a highly efficient equipment widely used in the mining industry. It is mainly used to separate bulk materials based on the size, shape and density of the materials, especially in operations involving the screening of granular materials such as ores, sand, gravel and aggregates.
The working principle of the banana screen is the result of its innovative design and functionality, which improves the overall efficiency of the screening process. Let’s explore how it works.
1. Design of the banana screen

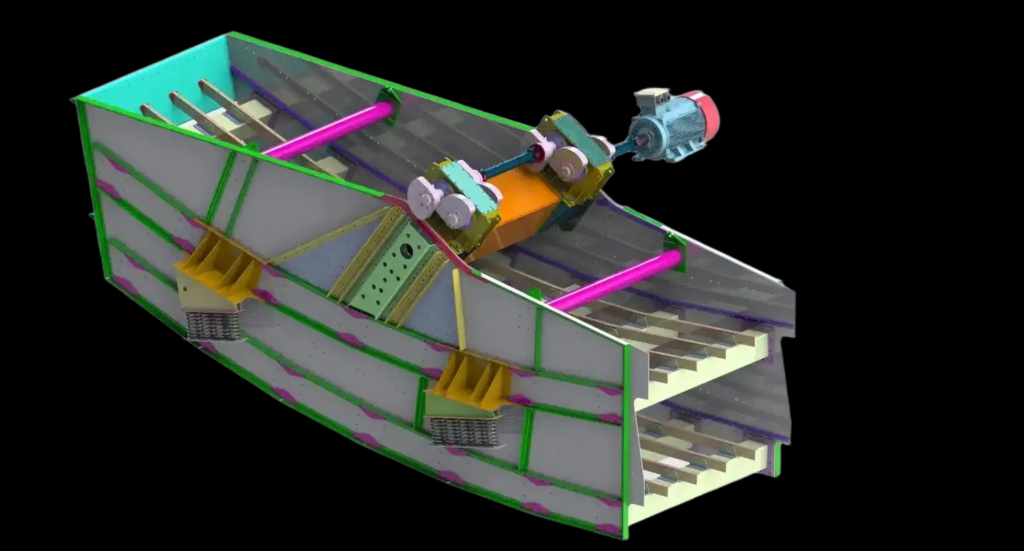

The banana screen gets its name from its unique shape, which resembles the curved shape of a banana. The screen is designed with multiple slopes, usually with angles ranging from 10° to 30°, depending on the material to be processed.
The screen plates are arranged in such a way that they provide different slopes in stages. These stages are arranged from high to low, forming a unique banana shape.
Banana screens are essential equipment in the mining industry and are well known for their efficient material separation capabilities. Judun Mining Machinery Co., Ltd. is a leading mining equipment manufacturer that offers a wide range of banana screens designed to meet the specific needs of modern mining operations.
2. Working Principle of Banana Screen
The screen surface is in the shape of a “banana” from the feed end to the discharge end, and the slope gradually decreases. Under the action of vibration, larger particles are quickly separated at the steep slope, while smaller particles continue to separate in the flatter area, thereby improving the classification efficiency and screening area.
The vibration system provides power through the exciter so that the material is evenly distributed and flows along different slopes. The heavy particles are separated first, and the light particles continue to be screened downward. The overall design effectively avoids blockage and improves screening efficiency, especially for high-capacity processing.
3. Judun Mining Machinery Co., Ltd. Banana Screen Models
Judun Mining Machinery Co., Ltd. offers a range of JBS series banana screen models to meet different mining needs. Known for high throughput, durability and low maintenance costs.
This series of banana screens features a sturdy multi-slope design with adjustable angles to meet different material processing needs. The series is well suited for large-scale operations, with a wide screening area for efficient material separation.
Commonly used in coal, ore and aggregate processing plants, handling materials such as crushed ore, sand and coal dust. Its versatile design allows for high capacity and reliable operation in harsh environments.
4. Advantages of Judun Banana Screen
High Throughput and Capacity: Jushield’s banana screens are designed for maximum screening area, offering higher throughput compared to traditional flat or single-slope screens. This results in faster processing and better efficiency.
Customizable Design: Depending on the material and operational needs, Jushield offers adjustable slope angles and varying deck configurations to tailor the screen to the specific application.
Durability and Low Maintenance: Jushield’s banana screens are built to last. The use of high-quality materials and precision engineering ensures that their screens can handle tough mining conditions while requiring minimal maintenance.
Energy Efficiency: With advanced vibration systems, Jushield’s banana screens are optimized for energy efficiency, reducing operational costs while maintaining high performance.
5.Applications of Banana Screens in Mining
Banana screens from Judun Mining Machinery Co., Ltd. are widely used in various mining operations:
Ore Processing: Banana screens are used to separate crushed ore into different sizes, ensuring that only the desired particle size enters the next stage of processing, such as grinding or flotation.
Coal Mining: In coal mining, Judun banana screens efficiently classify coal particles, separating fines from larger coal lumps for better downstream processing and transport.
Aggregate Production: For aggregate producers, banana screens provide effective separation of various sizes of sand, gravel, and crushed stone, improving product quality and consistency.
Slurry Screening: In wet processing operations, Judun banana screens help efficiently classify and dewater slurry, separating fine particles from water to improve the overall recovery rate.
Conclusion
Banana screens are a vital part of modern mining and aggregate processing. Judun Mining Machinery Co., Ltd. provides a range of banana screen models designed for high efficiency, durability, and energy-saving performance. Whether it’s handling coarse ore or fine coal slurry, Judun’s banana screens offer effective solutions to increase throughput, improve separation accuracy, and reduce maintenance costs. By choosing Judun’s banana screens, mining operations can optimize their material classification processes and boost productivity.
