- The unique design and curved screen surface can effectively increase the screening area and significantly improve the screening efficiency.
- The multi-layer screen design can achieve multiple screenings to further remove impurities and ensure product quality.
- The screen surface design promotes uniform distribution of materials on the screen surface, reduces blockage and accumulation, and extends the service life of the screen.
- It has a simple structure, easy operation, low maintenance cost, and the screen can be quickly replaced and cleaned, reducing maintenance time and downtime losses.

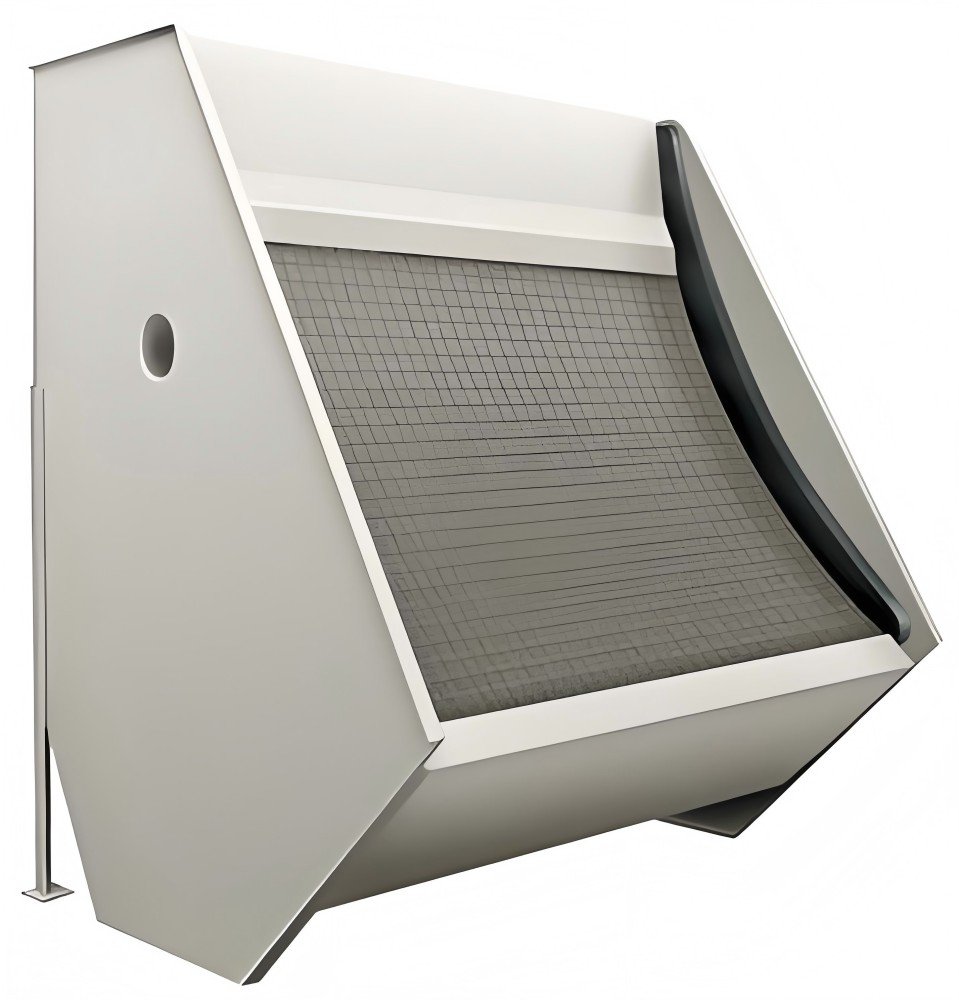

Curved Screen
Curved screen is mainly used in coal preparation plants and ore preparation plants for pre-dehydration, desludging and de-mediuming of materials, and recovery of graded coal slime. It can also be used in conjunction with a hydrocyclone to grade, dehydrate, desludify and de-medium fine-grained materials.
Model
| 型号 Model |
JHS-F | JHS | JHS-Z | JHS-A-F | JHS-J |
| 结构类型 Structure Type |
可翻转弧形筛 Flip-type curved screen |
固定式弧形筛 Fixed curved screen |
振动弧形筛 Vibrating curved screen |
自动翻转弧形筛 Automatic flip arc screen |
击打弧形筛 Beating curved screen |
| 筛宽 Screen width(mm) |
500-5000 | 500-5000 | 500-5000 | 500-5000 | 500-5000 |
| 筛面包角 Sieve Bread Corner° |
45、53、60 | 45、53、60 | 45、53、60 | 45、53、60 | 45、53、60 |
| 弧形半径 Arc radius |
2032 | 2032 | 2032 | 2032 | 2032 |
| 筛缝尺寸 Screen slot size(mm) |
0.2-2.5 | 0.2-2.5 | 0.2-2.5 | 0.2-2.5 | 0.2-2.5 |
| 安装角度 Installation angle° |
45-53 | 45-53 | 45-53 | 45-53 | 45-53 |
