- Designed with proprietary technology, it has multiple screens with different inclinations. The inclined screen design speeds up material screening, and thin layer separation allows large pieces to pass quickly, while fine particles can easily pass through the screen holes, improving screening efficiency and processing capacity.
- The equipment is also equipped with an intelligent control system that can automatically adjust the vibration frequency and amplitude of the screen according to actual conditions to further optimize the screening effect.
- The structure is simple, and the driving part only needs one or two motors. The screen can be made into multiple layers. The overall weight of the screen machine is light, the power consumption is low, the operation is stable and reliable, the failure rate is extremely low, the daily maintenance is less, the operation noise is low, the service life is long, and it is environmentally friendly and energy-saving.

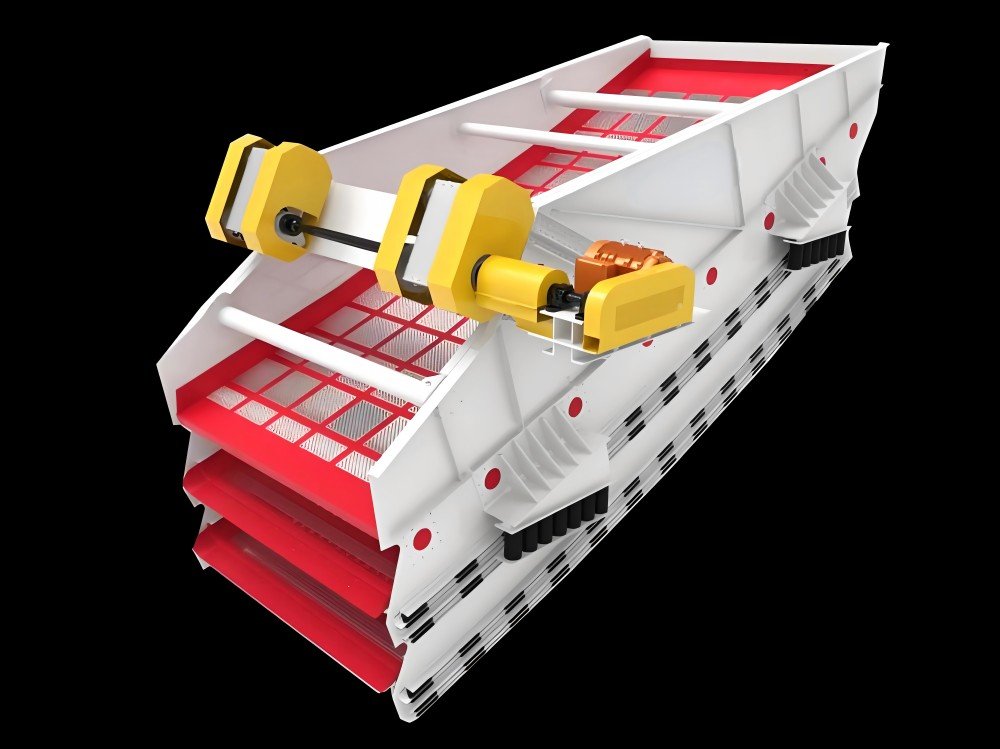

Large Relaxation Screen
Judun vibrating screen is designed based on the principle of equal thickness screening and linear vibration theory, adopting cutting-edge design concepts and finite element mechanical analysis technology. By using advanced CNC processing technology, process flow and testing equipment, the quality and performance stability of the product are ensured.
Model
| 型号 Model |
JFD2461 | JFD3085 | JFD3690 | JFD4310 |
| 筛面面积 Screen area (㎡) |
14.64*2 | 25.5*2 | 32.4*2 | 43*2 |
| 振动方向角 Vibration direction angle° |
40 | |||
| 振动频率 Vibration frequency(Hz) |
12.5~13.33 | |||
| 功率 Power(kw) |
30 | 55 | 55 | 90 |
| 双振幅 Double Amplitude(mm) |
12~16 | |||
| 筛孔尺寸 Screen size (mm) |
6~25 | |||
| 处理量 Processing capacity(t/h) |
200~600 | 300~900 | 400~1000 | 600~1200 |
| 筛面倾角 Screen surface inclination° |
15~20 | |||
