- The staggered arrangement of the screen shafts and screen plates of the roller screen can effectively reduce the dead angle between adjacent screen shafts, avoid jamming, and ensure that each set of screen shafts is equipped with a complete drive device, thereby improving the screening efficiency.
- Wear-resistant lining protection structure is adopted at both ends of the screen shaft, which solves the problem of large blocks stuck on both sides of the box and the screen plate, and ensures the stable operation of the equipment. The equipment box is made of steel plate to ensure sufficient rigidity, and the main welds are inspected by flaw detection to ensure quality.
- It has a simple structure, no vibrating parts, low noise, and small daily maintenance, and can classify materials smaller than the sieve holes and larger than the sieve holes.

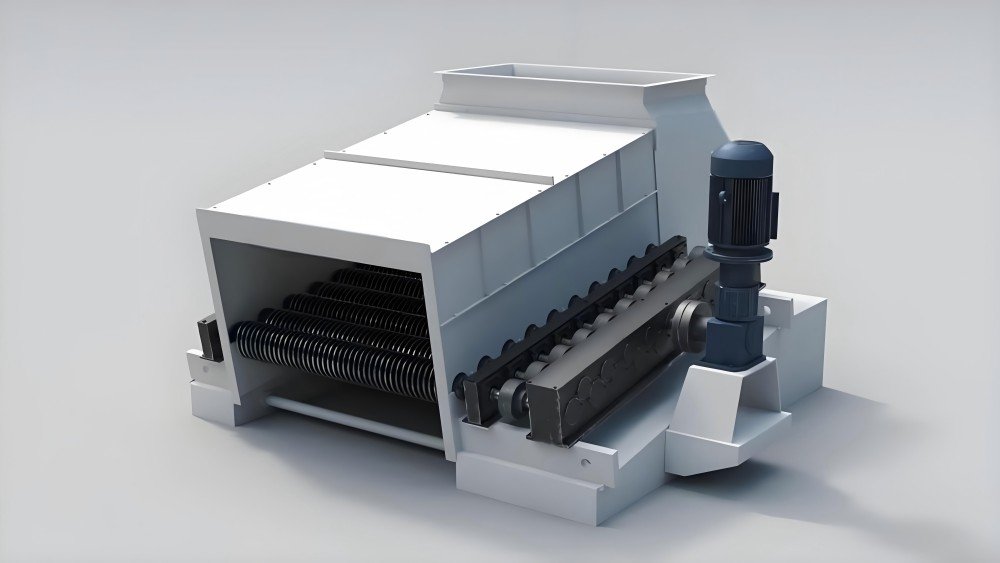

Roller Screen
The Judun roller screen drives the material to be screened through multiple parallel arranged screen shafts. The screen shafts are driven to rotate through the transmission device, and finally the material is graded.
Model
| 型号 Model |
JDG500 | JDG700 | JDG1000 | JJDG1200 | JDG1500 | JDG1500 | JDG2000 |
| 筛面宽度 Screen width(mm) |
1000 | 1000 | 1400 | 1400 | 1400 | 1800 | 1800 |
| 轴数 Number of axes |
9 | 12 | 9 | 12 | 15 | 12 | 18 |
| 出力 Output(t/h) |
500 | 700 | 1000 | 1200 | 1500 | 1500 | 2000 |
| 筛孔尺寸 Screen size (mm) |
55*65 | 55*65 | 60*80 | 60*80 | 60*80 | 60*80 | 60*80 |
| 减速机 Reducer |
YZx132M21 | ||||||
| 减速机速比 Speed ratio of reducer |
5.474 | 5.474 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| 外形尺寸 (mm) |
3100x1955 x1300 |
4030x1955 x1300 |
3440x2691 x1500 |
4400x2691 x1500 |
5360x2691 x1500 |
4400x3091 x1800 |
6320x3091 x1800 |
