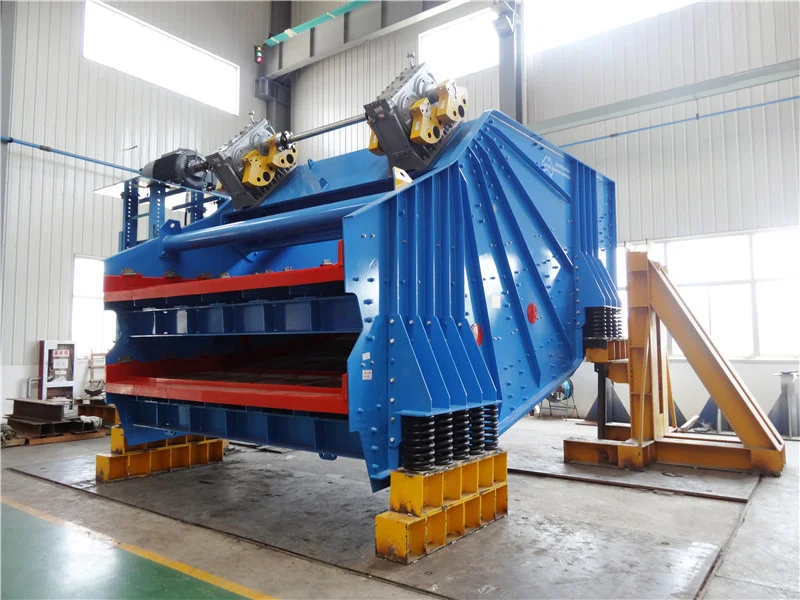

Double-layer Vibrating Banana Sieve
Single-layer Vibrating Banana Sieve

Single/Double-layer Vibrating Banana Sieve

Judun vibrating screen is designed based on the principle of equal thickness screening and linear vibration theory, adopting cutting-edge design concepts and finite element mechanical analysis technology. By using advanced CNC processing technology, process flow and testing equipment, the quality and performance stability of the product are ensured.

Category: Tag:
  • Banana screen is also called equal thickness screen. According to the equal thickness screening principle, the screen surface angle is designed to be continuous and multi-angle, and the angle decreases from the feed end to the discharge end. Under the same vibration intensity, the materials in each section on the screen surface can obtain different throwing intensity and movement speed (decreasing in sequence), so that the thickness of the screen surface layer remains unchanged or decreases from the feed end to the discharge end.
  • The overall modular design is adopted, with high screening efficiency, convenient maintenance, stable operation and low noise.

Model

型号
Model		 JBS2461 JBS3061 JBS3661 JBS3673 JBS4361 JBS4373
筛面面积
Screen area
(㎡)		 14.64 18.3 21.96 26.28 26.23 31.39
振动方向角
Vibration direction angle°		 45
振动频率
Vibration frequency(Hz)		 12.5-16
功率
Power(kw)		 30 30 45 45 55 55
双振幅
Double Amplitude(mm)		 8-12
筛孔尺寸
Screen size
(mm)		 6-100
处理量
Processing capacity(t/h)		 110~440 200~550 260~700 300~800 350~900 350~950
筛面倾角
Screen surface inclination°		 5-34
